Mystery Machine Vehicle

I followed this vehicle from concept to its current production status. I was provided with the original concept orthographics and the vendor provided the base vehicle and design envelope. I was the lead 3D designer interpreting the orthographics into a workable 3D vehicle.  I bridged the gap between the art director, IP brand assurance, and ride manufacturers, solving potential production issues while maintaining the design intent.

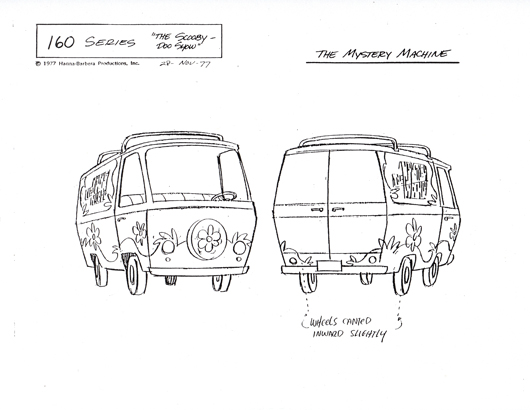

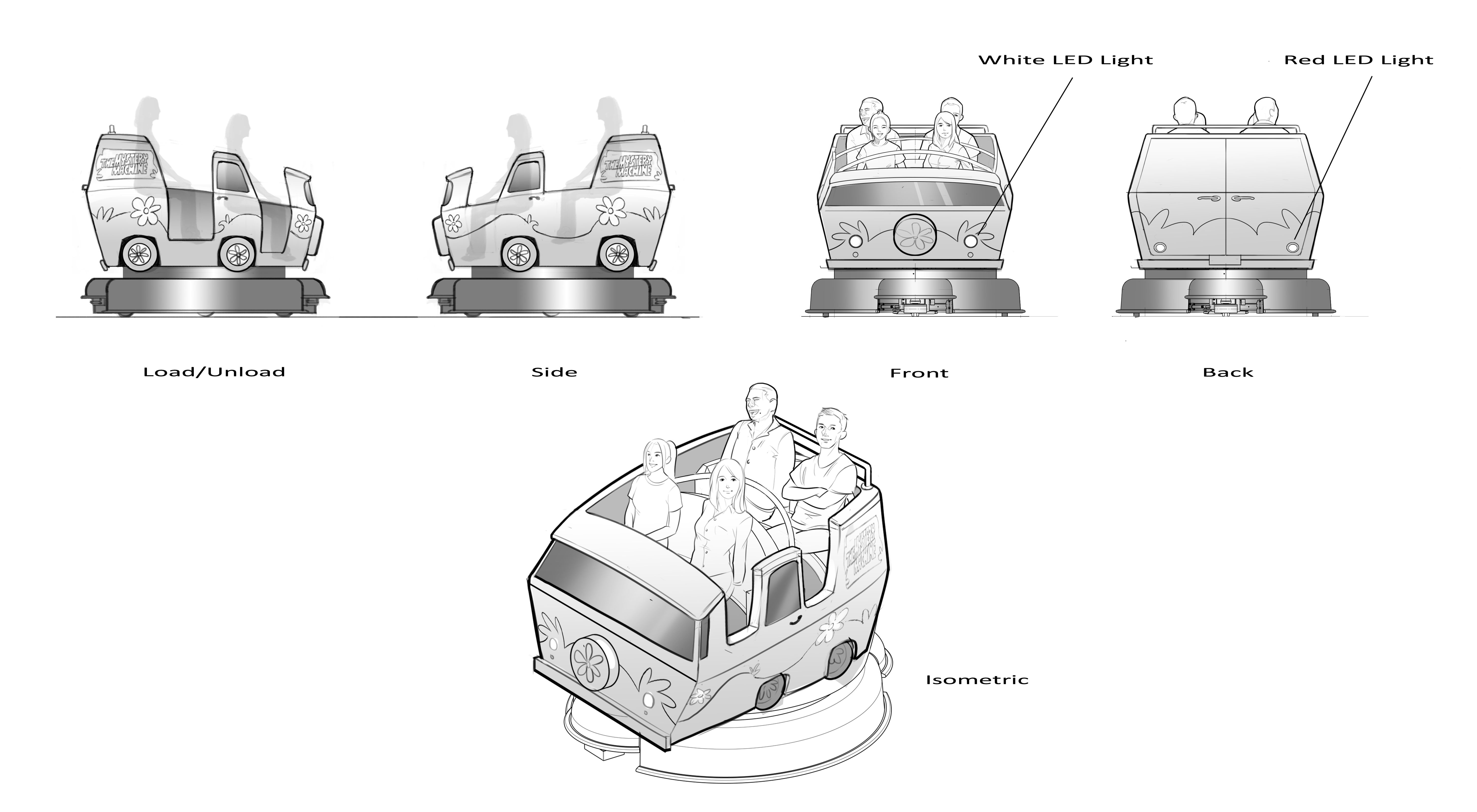

Original orthographics provided by concept artist
Vendor provided base cabin and envelope
Brand assurance reference

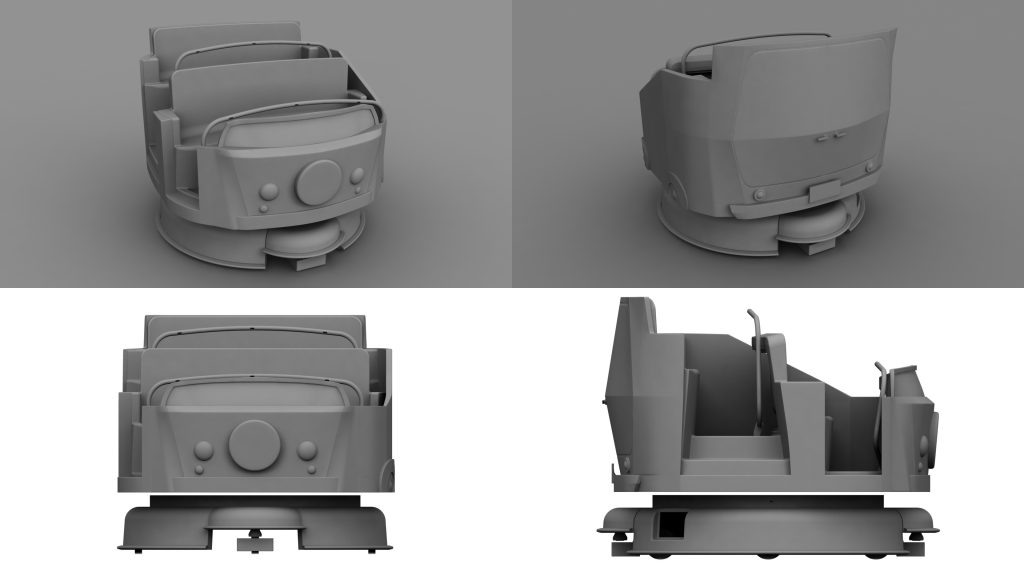

Modeled in Maya

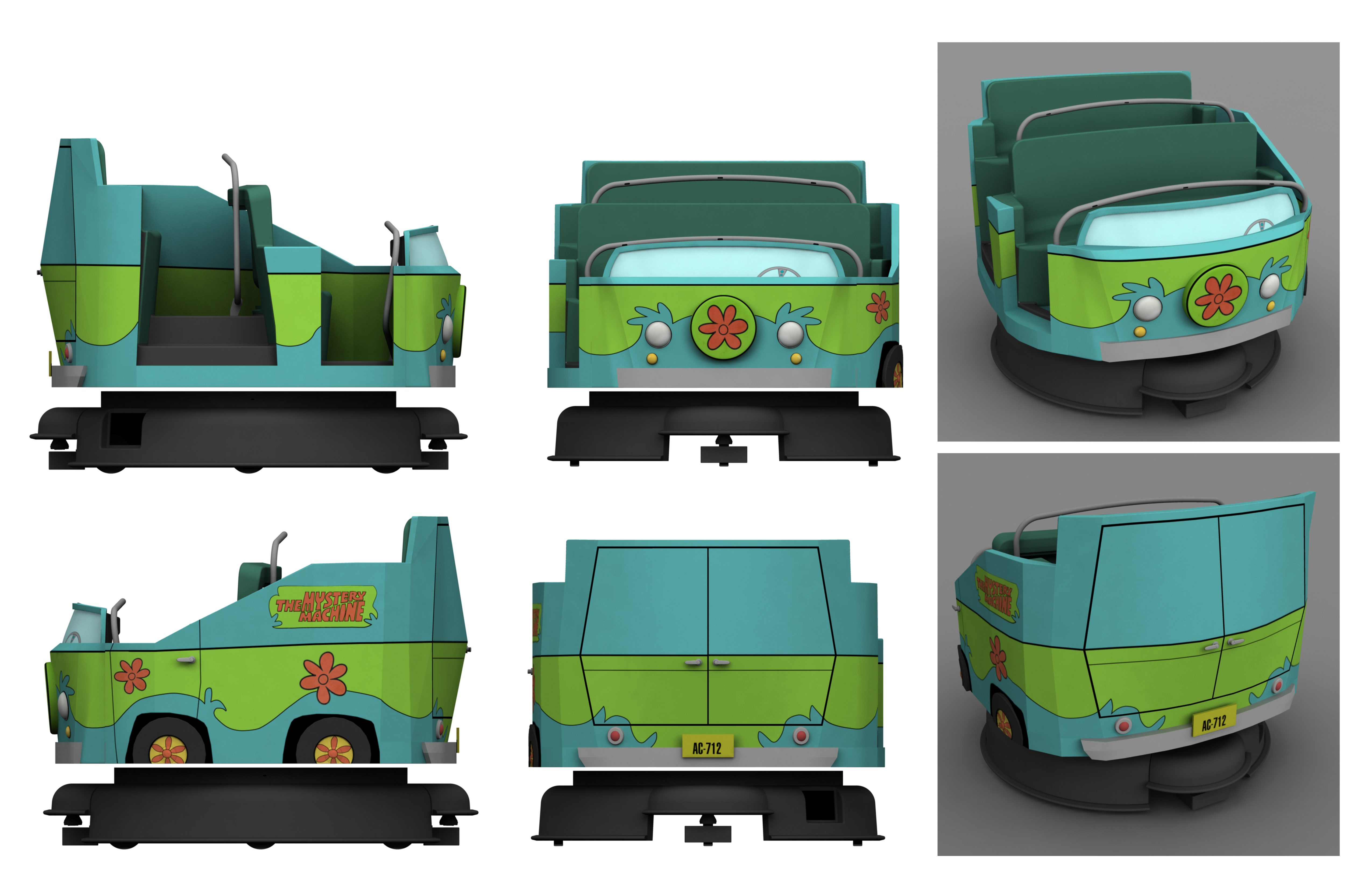

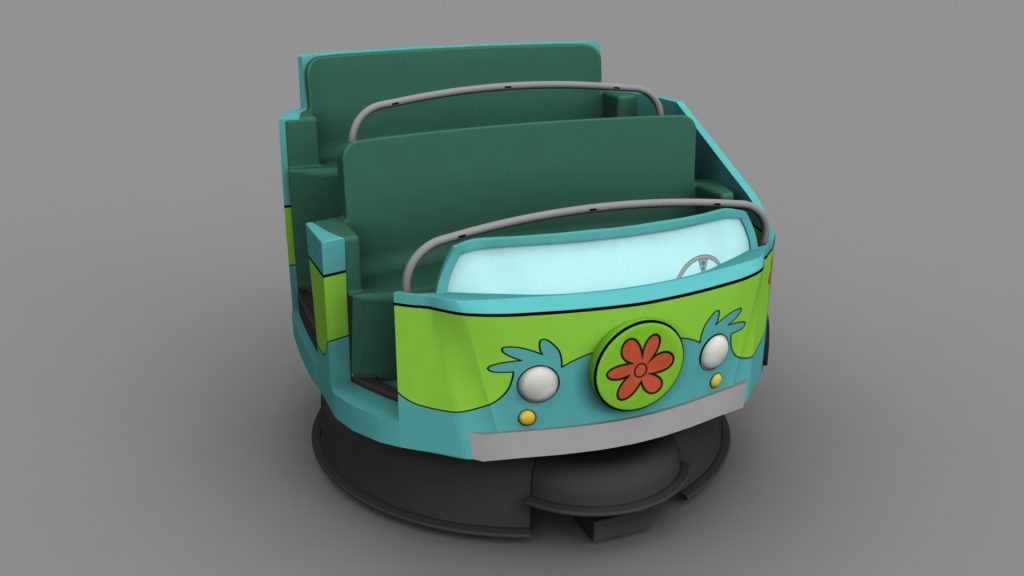

Textured and rendered in Maya
Final DD Maya model of cabin design

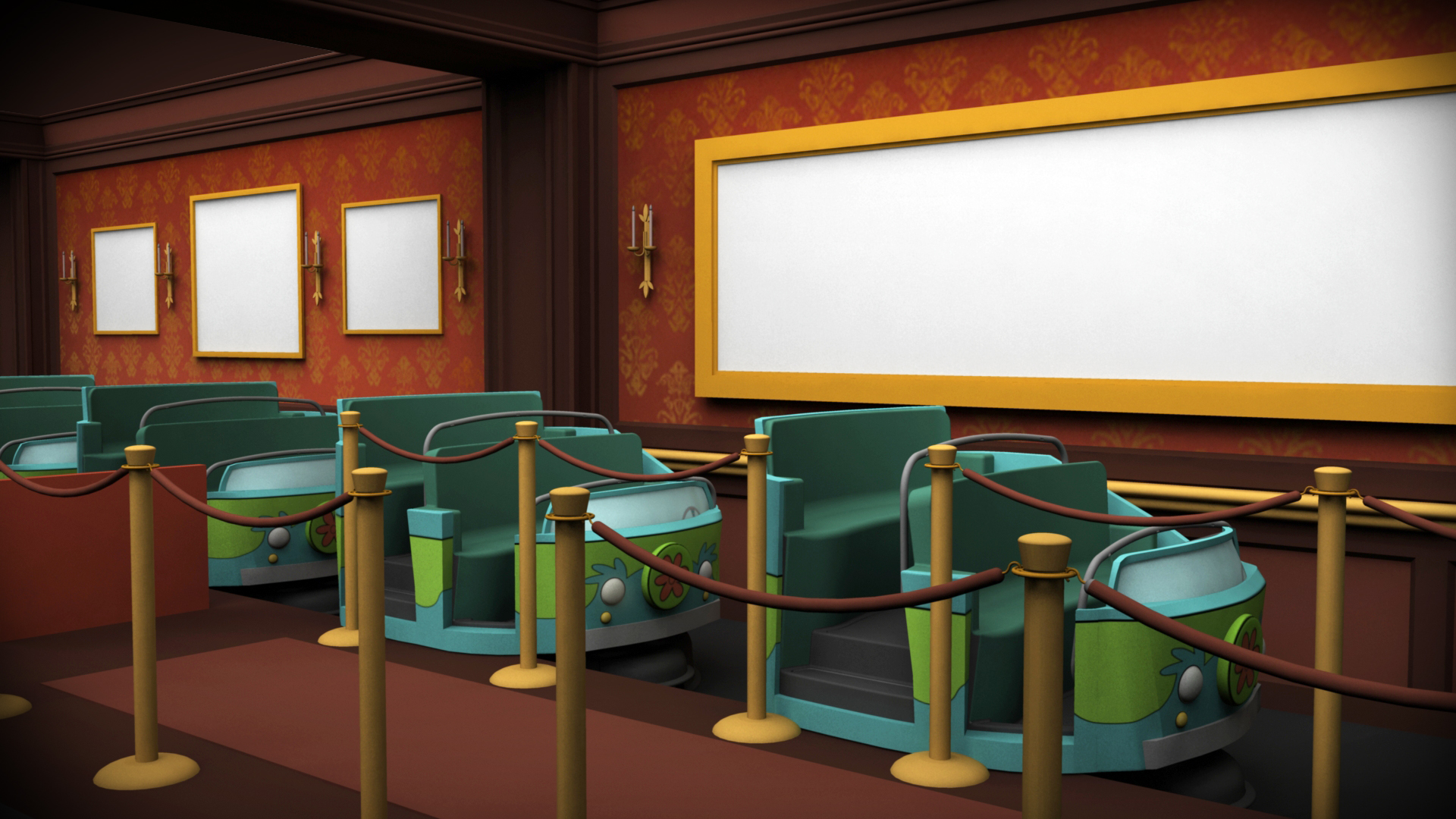

Textured, lit, and rendered in Maya to show context of vehicle in load station

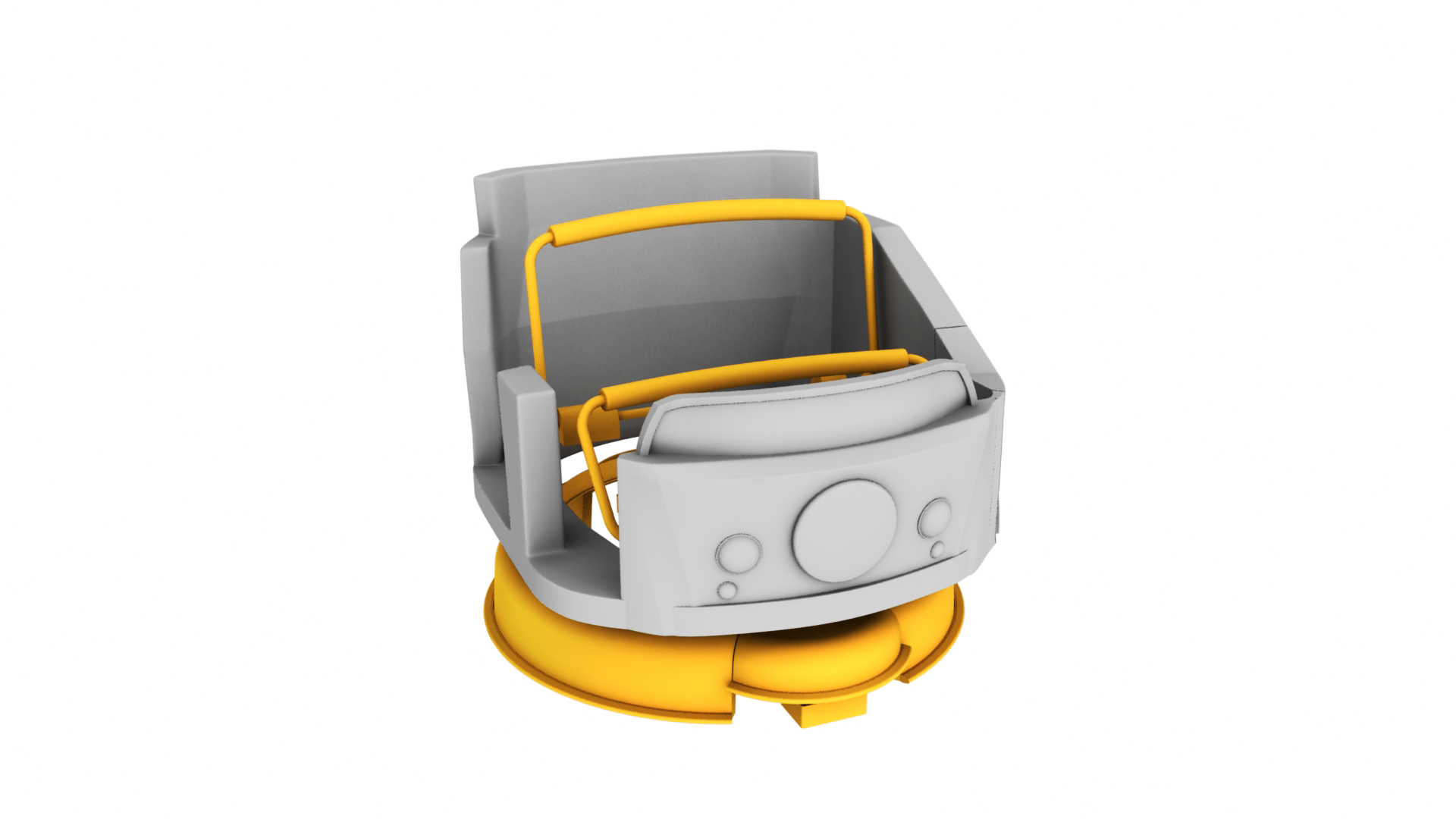

Final production Maya model of cabin design

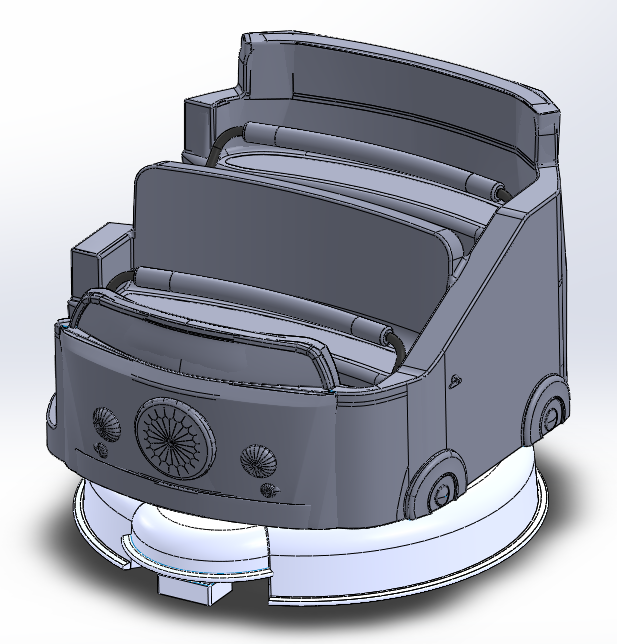

Final SolidWorks converted model of cabin Design
Vehicle fabrication process

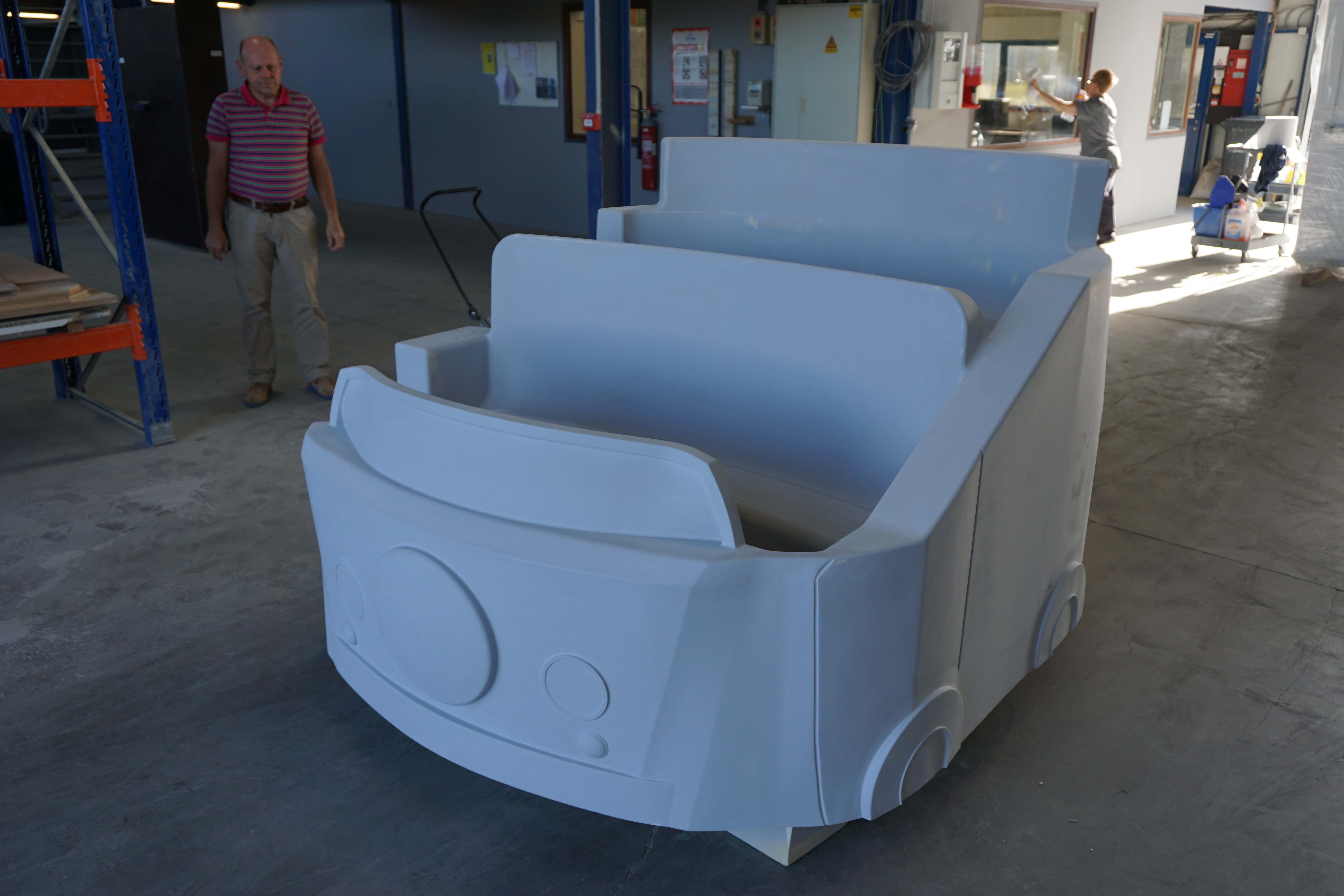

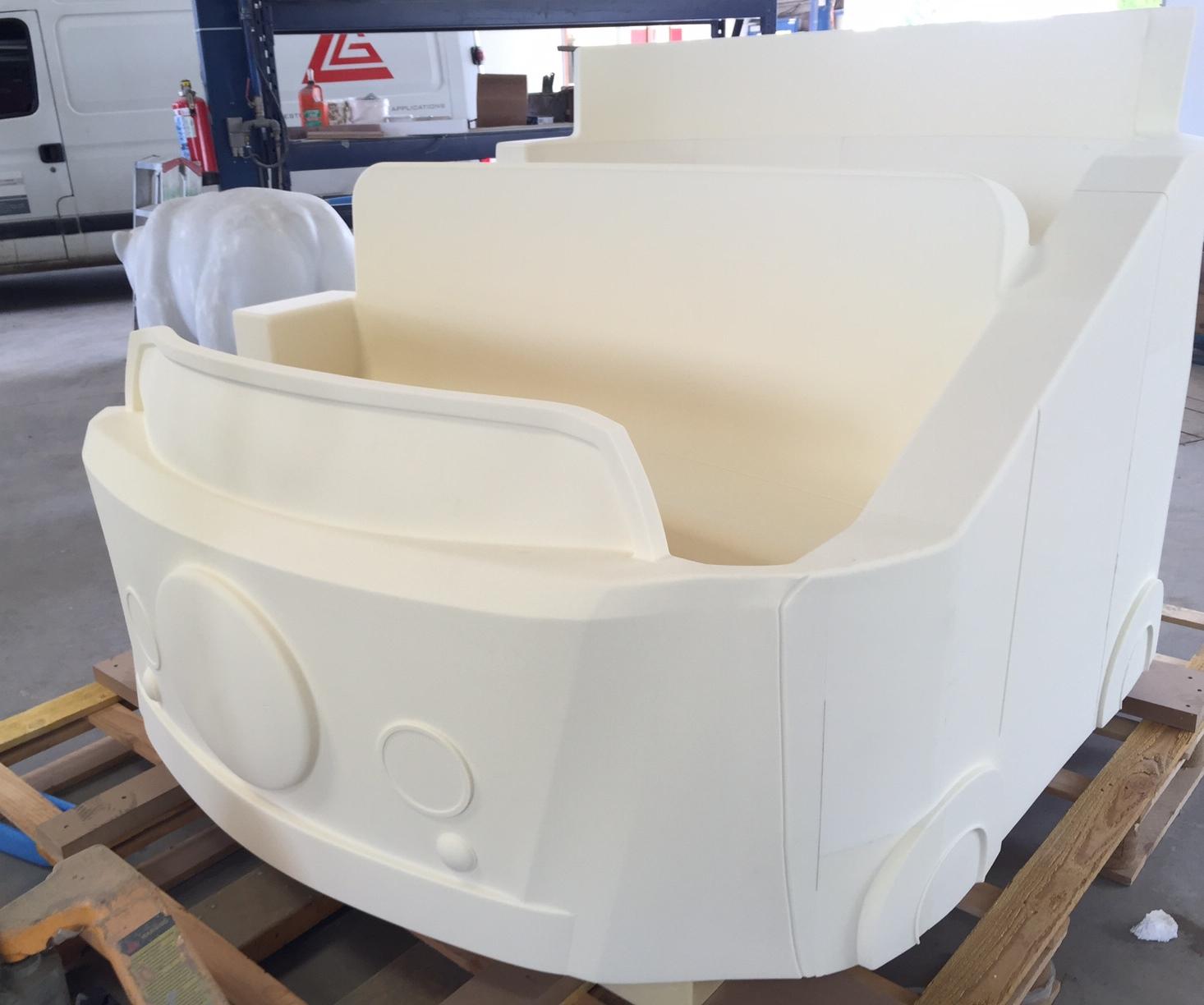

Vehicle first article mold

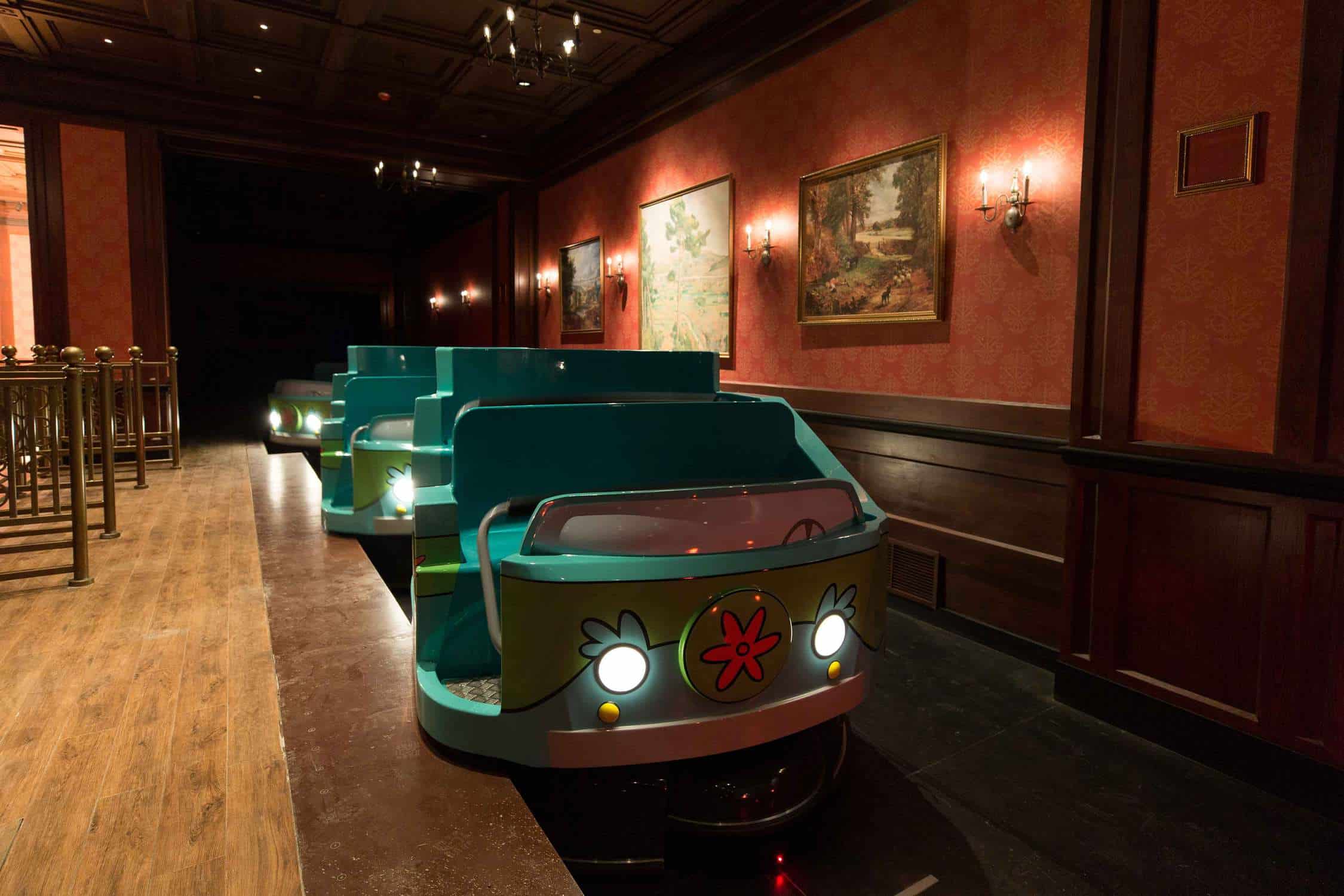

Final Vehicles

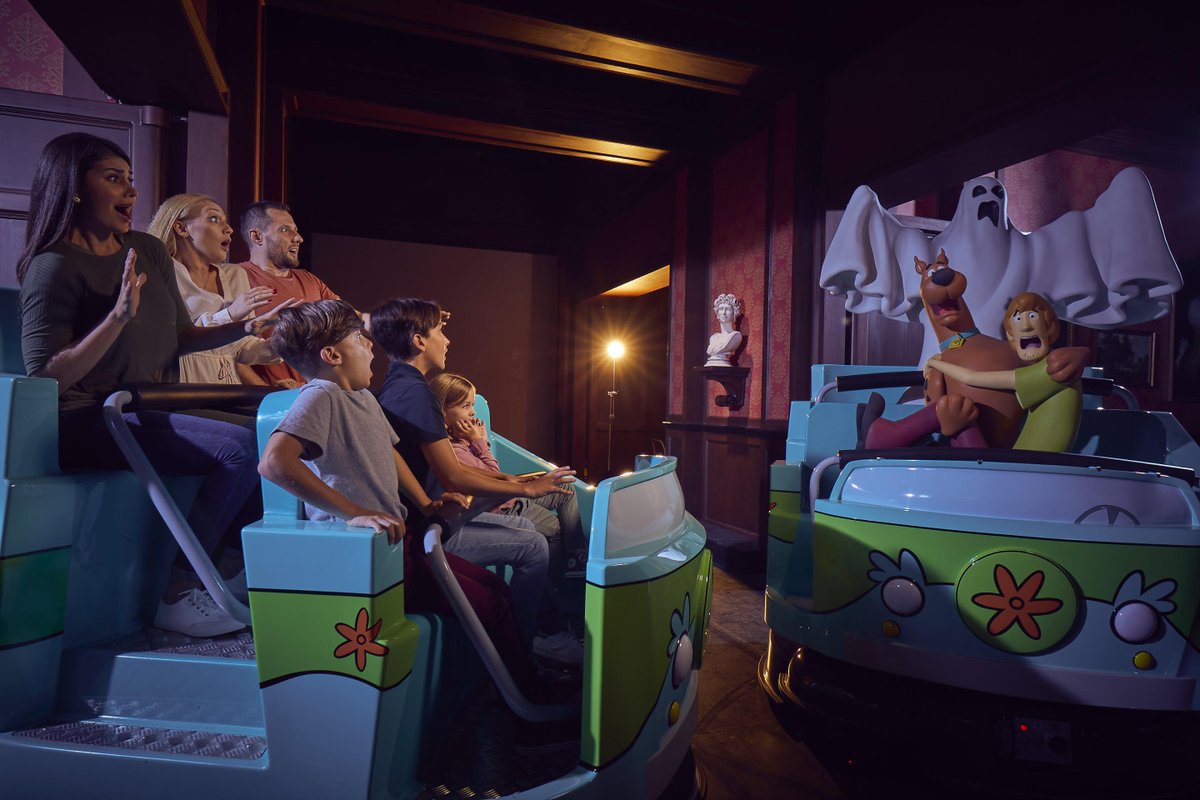

Final In-Ride Marketing Photo
